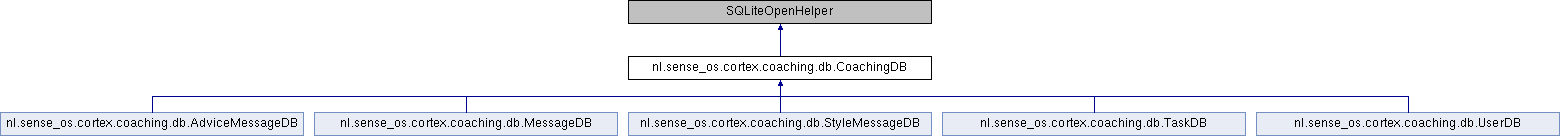

Inheritance diagram for nl.sense_os.cortex.coaching.db.CoachingDB:

Public Member Functions
	CoachingDB (SensePlatform sensePlatform, JSONObject dataStructure)

SQLiteDatabase	getWritableDatabase ()

SQLiteDatabase	getReadableDatabase ()

void	onConfigure (SQLiteDatabase db)

void	onOpen (SQLiteDatabase db)

void	onCreate (SQLiteDatabase db)

void	onUpgrade (SQLiteDatabase db, int oldVersion, int newVersion)

boolean	add (JSONObject object)

boolean	add (JSONObject object, SQLiteDatabase db)

JSONArray	get (JSONObject criterion)

JSONArray	get (JSONObject start_criterion, JSONObject end_criterion)

void	clearTable ()

Static Public Attributes
static final String	KEY_ID = "_id"

static final String	KEY_LOGIN_USERNAME = "login_username"

static final String	KEY_MUTATED_AT = "mutated_at"

Protected Member Functions
String	getLoginUsername ()

String	createTableString ()

ContentValues	toContentValues (JSONObject object)

String	createEquals (JSONObject criterion)

String	createBetween (JSONObject first_criterion, JSONObject second_criterion)

JSONObject	getSingleCreterion (JSONObject first_criterion, JSONObject second_criterion)

JSONObject	toJSONObject (Cursor c)

boolean	update (JSONObject object)

boolean	delete (JSONObject object)

Protected Attributes
String	tableName

JSONObject	dataStructure

SensePlatform	sensePlatform

boolean	userAutoIncrementKey = true

boolean	isUserSpecificTable = true

boolean	tableCreated = false

Static Protected Attributes
static String	TAG = "CoachingDB"

static final String	TYPE_INTEGER = " INTEGER"

static final String	TYPE_TEXT = " TEXT"

static final String	TYPE_DATETIME = " DATETIME"

static final String	TYPE_REAL = " REAL"

Detailed Description

Helper class for local data storage

This class creates a simple way of storing JSONObject data in an SQLite database.
Based on an example JSONObject a table will be constructed with the appropriate columns names and types.
All the data added, updated, or retrieved will have the described JSONObject.

Author: ted@s.nosp@m.ense.nosp@m.-os.n.nosp@m.l

Date: July 03 2014

Constructor & Destructor Documentation

nl.sense_os.cortex.coaching.db.CoachingDB.CoachingDB	(	SensePlatform	sensePlatform,
		JSONObject	dataStructure
	)

Create Database Table based on JSONObject

Creates a Database DATABASE_NAME with as table TABLE with a structure defined by the JSONObject dataStructure.
The fields and data types of the values in the JSONObject are used to create the columns with their data types.

Parameters

context	The application context
dataStructure	Example JSONObject representing the Table structure.

Member Function Documentation

boolean nl.sense_os.cortex.coaching.db.CoachingDB.add ( JSONObject object )

Add a row

Add a row based on the JSONObject parameter.
The parameter should have the same structure as defined in the dataStructure data member of the class.
The mutation date column KEY_MUTATED_AT will be updated.

Parameters

object The JSONObject to add as row.

Returns: True if it was successful otherwise False

boolean nl.sense_os.cortex.coaching.db.CoachingDB.add	(	JSONObject	object,
		SQLiteDatabase	db
	)

Add a row

Add a row based on the JSONObject parameter.
The parameter should have the same structure as defined in the dataStructure data member of the class.
The mutation date column KEY_MUTATED_AT will be updated.

Parameters

object	The JSONObject to add as row.
db	A SQLiteDatabase instance which is writable

Returns: True if it was successful otherwise False

void nl.sense_os.cortex.coaching.db.CoachingDB.clearTable ( )

Clear table

Removes all the rows from the table.

String nl.sense_os.cortex.coaching.db.CoachingDB.createBetween	(	JSONObject	first_criterion,
		JSONObject	second_criterion
	)

protected

Create SQL between statement

Creates an SQL between String based on the criterion given by the first and second JSONObject.
Based on the fields and values in both JSONObject a "field > 'first_value' AND field < 'second_value'" String concatenated with 'AND' for all the field and values is created.

Parameters

criterion The JSONObject holding the fields and values.

Returns: The SQL WHERE String

String nl.sense_os.cortex.coaching.db.CoachingDB.createEquals ( JSONObject criterion )

protected

Create SQL equals statement

Creates an SQL equals String based on the criterion given by the JSONObject.
Based on the fields and values in the JSONObject a 'column = value' String concatenated with 'AND' for all the field and values is created.

Parameters

criterion The JSONObject holding the fields and values.

Returns: The SQL WHERE String

String nl.sense_os.cortex.coaching.db.CoachingDB.createTableString ( )

protected

Get CREATE TABLE IF NOT EXISTS String

Constructs the CREATE TABLE String based on the dataStructure data member of the class.
The columns will be created with the types of the values in the dataStructure.

Returns: The CREATE TABLE String

boolean nl.sense_os.cortex.coaching.db.CoachingDB.delete ( JSONObject object )

protected

Delete a row

Deletes a row based on the primary key (KEY_ID) given in the JSONObject.
The JSONObject parameter should have the same structure as defined in the dataStructure data member of the class.

Parameters

object The JSONObject to update.

Returns: True if at least one object was updated, false otherwise.

JSONArray nl.sense_os.cortex.coaching.db.CoachingDB.get ( JSONObject criterion )

Get similar data

Based on the fields and values in the JSONObject a criterion is made for selecting the data.
Only equals is used as criterion for all the fields an values.
All the fields of the row are returned as JSONObject.

Parameters

criterion The JSONObject holding the fields and values.

Returns: JSONArray with row data as JSONObject

JSONArray nl.sense_os.cortex.coaching.db.CoachingDB.get	(	JSONObject	start_criterion,
		JSONObject	end_criterion
	)

Get range data

Based on the fields and values in the JSONObject a criterion is made for selecting the data.
For fields only available in one of the criteria equals function is used as criterion.
For fields which are available in both criteria between is used as criterion.
All the fields of the row are returned as JSONObject.

Parameters

start_criterion	The start criterion JSONObject holding the fields and values.
end_criterion	The end criterion JSONObject holding the fields and values.

Returns: JSONArray with row data as JSONObject.

String nl.sense_os.cortex.coaching.db.CoachingDB.getLoginUsername ( )

protected

Get a user specific database prefix

Use the username as the prefix so that each user has his own database.

Parameters

sensePlatform The binded SensePlatform

Returns: A user specific prefix String

JSONObject nl.sense_os.cortex.coaching.db.CoachingDB.getSingleCreterion	(	JSONObject	first_criterion,
		JSONObject	second_criterion
	)

protected

Create single criterion

Look at the fields which are only available in one of the JSONObjects and use this for creating a new criterion.

Parameters

first_criterion	The first criterion.
second_criterion	The second criterion.

Returns: A single criterion.

ContentValues nl.sense_os.cortex.coaching.db.CoachingDB.toContentValues ( JSONObject object )

protected

Convert a JSONOObject to ContentValues

Creates the ContentValues representation for a JSONObject.
It uses the data types of the fields, used in the JSONObject.
These data types should resemble the structure used to create the TABLE.

Parameters

object JSONObject to represent

Returns: The ContentValues representation

JSONObject nl.sense_os.cortex.coaching.db.CoachingDB.toJSONObject ( Cursor c )

protected

Convert Cursor to JSONOBject

Converts a row to a JSONObject, using the data types as defined in the dataStructure of the class.

Parameters

c	The Cursors to convert to a JSONObject

Returns: The JSONObject representation of the Cursor

boolean nl.sense_os.cortex.coaching.db.CoachingDB.update ( JSONObject object )

protected

Update a row

Updates a row based on the primary key (KEY_ID) given in the JSONObject.
The mutation date column KEY_MUTATED_AT will be updated.
The JSONObject parameter should have the same structure as defined in the dataStructure data member of the class.

Parameters

object The JSONObject to update.

Returns: True if at least one object was updated, false otherwise.

The documentation for this class was generated from the following file:

android-sdk/src/nl/sense_os/cortex/coaching/db/CoachingDB.java
